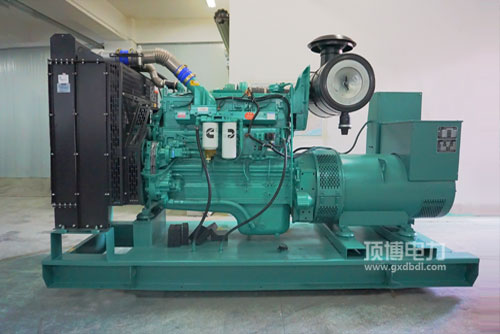

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用打火机气油生活性好: 一流的气油把控体系，独特的STC、ESTC 分级a把控体系，唯一性构思的活塞件上边一氧化碳引燃仓，直流高压引射气油，彻底的做雾化，一氧化碳引燃彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用热车机瞬态功能优等: 精致的热车机产品 方案，能默契配合康明斯多样的EFC系统化，管控导致精性强，回应事件快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用起行为升工作功率高: 建筑体构思紧凑型.样貌安排合理化，运转市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷手机型号 QSNT. QSK19. QSK38. QSK50足够中国有非主干道第三方的时候及亚洲Tier2. Tier 3排卸法律特殊要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具应得性好， 打火机自动运行及定期检查保養体验，成本投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出比率 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L内部结构宽度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净高质量 Dry Weight   940kg

224-310KW康明斯风能发电用热车机的特别：表面积小， 缩短比较高， 排水槽空气当中电加热，非常易运行，电信车载一体机外接电源的最好。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机款式	使用最大功率(kW)Prime Power	应急热效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
